ALIDO Relax Dryer - ALIDO

ALIDO Relax Dryer
 ALIDO Relax Dryer are constructed in a way making so they can suit the fabric which has to be passed in a relaxed condition.
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO
丨Main configuration of Drying Machine丨
1 FABRIC ENTRY SYSTEM 1:Overfeed roller movement have been controlled by inverter
2:Net-Belt tension-compensation system: automatically pneumatical control,keep belt tension go smoothly. Belt will be automatically loosed while the running stop so that keep the belt for always be good condition of using
3:Net-Belt guide correction system:independent inverter and automatically pneumatical control. Both sides have limiting device for protecting the net-belt off-tracking
2 DRYING SYSTEM 1:Fabric will be floatly forwarding by Hot-air blowing in the chamber, tension of
2:fabric will be recoved to natural status
3:Nozzel have been made by superior carbon steel,low-noise,high-strength,the flow of air-blowing is highly even
4:Every chamber have 2*11KW blower motor( Insulation Class F,easily maintenance) and high strength steel centrifugal fan which can improve the efficiency of hot-air circulating up to 15%-30%. Both of motor and fan can be drawn out from the chamber for easily fixed and maintenance
4:Every chamber have 2 sets of filter net, 40mesh stainless steel, it can be easily drawn out from chamber for cleaning the wasted fuzz
5:The thickness of insulation board is 105mm,stuffed with rock wool. And the gap between the board have high temperature resistance rubber seal for keep the warm to the utmost
6:Net belt is made by Dupont company,which material is fiber glass with PTFE coated, high air-permeability and temperature resistance up to 260℃
3 FABRIC EXIT SYSTEM 1:Rubber belt transfer the fabric without any slippage ,running smoothy, have no tension force to fabric
2:pendulum roller tidy the fabric
4 ELECTRICS 1:PLC+INVERTER control driving and hot-air blowing
2:Inside electricity cabinet have air-condition regulate the temperature
5 PNEUMATICS 1:Gas-water separator,filter,pressure reducing valve,reversing valve,pipe and cylinder etc

Tubular Compactor - ALIDO

Tubular Compactor
Tubular Compactor is mainly used for circular knit cotton fabric Tubular compacting and anti-shrinkage finishing.After Tubular Compactor treament, the residual shrinkage of circular knit fabric can be down to 2-5%.It gives the fabric a very good hand and appearence
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

Tubetex Tubular Compactor - ALIDO

Tubetex Tubular Compactor
Tubetex tubular compactor is mainly used for circular knit cotton fabric compacting and anti-shrinkage finishing.After Tubular Compactor treament, the residual shrinkage of circular knit fabric can be down to 2-5%.It gives the fabric a very good hand and appearence
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

Tubetex Compacting Machine - ALIDO

Tubetex Compacting Machine
Tubetex Compacting Machine is mainly used for circular knit cotton fabric compacting and anti-shrinkage finishing.After Tubular Compactor treament, the residual shrinkage of circular knit fabric can be down to 2-5%.It gives the fabric a very good hand and appearence
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

Sanforization Machine - ALIDO

Sanforization Machine
Sanforization machine makes the tubular fabric a controlled compression shrinkage, which eliminates distortions originated during previous processes. The fabric finished with this treatment keeps its shape also after repeated washing thus providing an excellent dimensional stability of the textile substrate.
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

Ferraro Type Tubular Compactor - ALIDO

Ferraro Type Tubular Compactor
Ferraro tubular compactor is mainly used for circular knit cotton fabric compacting and anti-shrinkage finishing.After Tubular Compactor treament, the residual shrinkage of circular knit fabric can be down to 2-5%.It gives the fabric a very good hand and appearence
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

Fabric Compacting Machine - ALIDO

Fabric Compacting Machine
Fabric compacting machine is mainly used for circular knit cotton fabric compacting and anti-shrinkage finishing.After Tubular Compactor treament, the residual shrinkage of circular knit fabric can be down to 2-5%.It gives the fabric a very good hand and appearence
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

Compactor Machine Textile - ALIDO

Compactor Machine Textile
Compactor Machine Textile is mainly used for circular knit cotton fabric compacting and anti-shrinkage finishing.After Tubular Compactor treament, the residual shrinkage of circular knit fabric can be down to 2-5%.It gives the fabric a very good hand and appearence
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

Compacting Machine Knitted Fabric - ALIDO

Compacting Machine Knitted Fabric
Compacting machine knitted fabric is mainly used for circular knit cotton fabric compacting and anti-shrinkage finishing.After Tubular Compactor treament, the residual shrinkage of circular knit fabric can be down to 2-5%.It gives the fabric a very good hand and appearence
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

Textile Compressive Shrinkage

Compressive Shrinkage is a process in which fabric is caused to shrink in length by compression.It often referred to as controlled compresssive shrinkage.The purpose of the compressive shrinkae process is to shrink fabrics in such a way that textiles made up of these fabrics do not shrink during washing--ALIDO textile finishing machine.

The Sanfor-Set process is a further development in which the preliminary mercerising treatment takes place in liquid ammonia. In principle the fabric is only able to shrink if the hydrogen bonds in cotton are first substantially broken by humidification and steaming. This is brought about by mechanically stuffing the fabric together before the new state is set by drying (locking the hydrogen bonds in place).

The fabric entry to the felt belt  shrinking unit is formed by the sandwich created by a large heated cylinder and a continuous felt belt (21 mm thickness, 40° Shore hardness). The fabric is placed on the extended surface of the felt belt and is thus forcibly contracted by the shortening of the surface of the felt belt, with the smooth surface of the cylinder presenting virtually no impediment to this process. The greater the contact pressure of the felt belt the greater the shrinkage. At the entry point the felt belt can be compressed at most down to 30% of its normal thickness. The corresponding Sanfor-Knit process is used for tubular knitted fabrics and also for open-width flat knits.

The “NY35” tubetex compacting machine , used to shrink tubular knits, operates in a similar way to a rotary press. In the Tube-Tex-Compactor the fabric is passed over a roller running at higher speed and into the gap it forms with the hot shoe. Because the take-off roller, which has deeply engraved lateral surface grooves,runs more slowly the fabric is shrunk in the highly condensed core zone as a result of having been steamed in a twin-jet chamber before entering.

From ALIDO--Textile Finishing Machinery

Fabric Drying Process

Why need the Fabric Drying Process?--ALIDO textile finishing machine

Fabric drying process is the frequency of textile finishing ,which requiring impregnation of the textile substrate (washing,impregnation in dyeing or finishing liquor, desizing and so on), consequently leads to the need of subsequent drying processes.With a high impact on processing costs, it depend on fabric properties of nature and structure,whether the textile fabrics absorb greater or lower quantities of water; the water absorbed by the textile material is partly retained between the fibres and in the pores of the fabric and partly more deeply in the fabric by the swollen fibres. The water between the fibres or on the fabric surface can be eliminated mechanically while the water in the swollen fibres can be eliminated with a drying processes.

Adjust the moisture content of fabric

The drying speed is determined by the difference between the tension of water steam on the textile surface and the tension of the water steam in the drying unit: it increases proportionally to the decrease of the moisture content in the air of the unit.In order to keep this content on low levels it is necessary to blow in the drying units huge quantities of heated air at the same temperature of the drying unit, which leads to huge energy consumption.When setting the desired moisture degree of the air in the drying unit, it is worth considering that the best degree results from a correct proportion between efficient output speed and cost-
effective energy consumption.

From ALIDO--Textile Finishing Machinery

Bianco Open Width Compactor - ALIDO

Bianco Open Width Compactor
Bianco Open Width Compactor is important machine in knit fabric finishing process. There are a lot of technical work which are done by compactor machine. The works are done by compactor machine are pointed out below:
1. GSM control of the knitted fabric. For high GSM, overfeed is increased and fabric width is decreased. For low GSM, overfeed is decreased and fabric width is increased.
2. Control shrinkage
3. Twisting control
4. Increase smoothness of fabric
5. Heat setting is done of fabric etc.
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO
丨Main Configuration丨
No Items & Unit Standard Option Brand Remark
1 Infrared Centering √ HET(China) Included
2 Mechanical centering √ ALIDO Included
3 Mechanical weft-straightener √ ALIDO Included
4 Photoelectric weft-straightener √ ALIDO Exclusive
5 Infrared auto tracking system √ HET(China) Included
6 Sync tension control system √ ALIDO Included
7 Selvage trimming system √ Exclusive
8 Stainless steel conveyor √ ALIDO Included
9 Double parallel SS steam box & SS Felt Steam box √ ALIDO Included
10 Uncurler √ ALIDO Included
11 Overfeed system √ ALIDO Included
12 Motor & reducer √ China Included
13 Inverter & PLC & HIM √ DELTA Included
14 Selvage gumming  system √ Exclusive
15 Cooling system √ ALIDO Included
16 Fabric exit system √ ALIDO Included
17 Low voltage devices √ Schneider Included
18 Stainless steel chain √ China Included
19 Stainless steel rail(oil-free) √ China Included
20 Stainless steel pin & pin plate √ China Included
21 Fabric width adjustment system √ China Included
22 Fabric width ad sensor √ Omron Included
23 Compacting felt √ China Included
24 Industrial cabinet Air-condition √ China Included
25 Button & indicator light √ China Included
26 Double sides static eliminator √ China Included
27 Fabric exit humidity system √ Exclusive
28 Faric metering system √ China Included
29 Installation tools & cables & necessities √ China Included
Electrical heating system
1 temperature-controlled meter √ Honeywell Included
2 tubular electric heating element √ China Included
3 carbon brush slip-ring √ China Included
4 Sealed cylinder with conduct oil √ China Included
3 Overheating protection System √ China Included

Compactor Machine - ALIDO

Compactor Machine
Compactor Machine is suitable for open width knit fabrics to achieve exact dimensional stability and a soft feel. The machine generally consists of a feeding frame with centering device and driven scroll rollers, an equalizing stenter frame with overfeed roller and brush pinning arrangement
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

丨Main Configuration丨
No Items & Unit Standard Option Brand Remark
1 Infrared Centering √ HET(China) Included
2 Mechanical centering √ ALIDO Included
3 Mechanical weft-straightener √ ALIDO Included
4 Photoelectric weft-straightener √ ALIDO Exclusive
5 Infrared auto tracking system √ HET(China) Included
6 Sync tension control system √ ALIDO Included
7 Selvage trimming system √ Exclusive
8 Stainless steel conveyor √ ALIDO Included
9 Double parallel SS steam box & SS Felt Steam box √ ALIDO Included
10 Uncurler √ ALIDO Included
11 Overfeed system √ ALIDO Included
12 Motor & reducer √ China Included
13 Inverter & PLC & HIM √ DELTA Included
14 Selvage gumming  system √ Exclusive
15 Cooling system √ ALIDO Included
16 Fabric exit system √ ALIDO Included
17 Low voltage devices √ Schneider Included
18 Stainless steel chain √ China Included
19 Stainless steel rail(oil-free) √ China Included
20 Stainless steel pin & pin plate √ China Included
21 Fabric width adjustment system √ China Included
22 Fabric width ad sensor √ Omron Included
23 Compacting felt √ China Included
24 Industrial cabinet Air-condition √ China Included
25 Button & indicator light √ China Included
26 Double sides static eliminator √ China Included
27 Fabric exit humidity system √ Exclusive
28 Faric metering system √ China Included
29 Installation tools & cables & necessities √ China Included
Electrical heating system
1 temperature-controlled meter √ Honeywell Included
2 tubular electric heating element √ China Included
3 carbon brush slip-ring √ China Included
4 Sealed cylinder with conduct oil √ China Included
3 Overheating protection System √ China Included

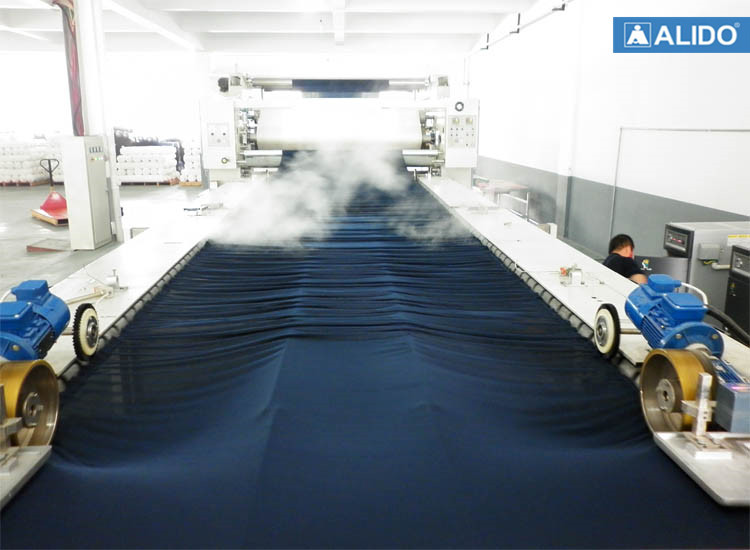

Compactor Machines - ALIDO

Compactor Machines
Compactor Machines is important machine in knit fabric finishing process. There are a lot of technical work which are done by compactor machine. The works are done by compactor machine are pointed out below:
1. GSM control of the knitted fabric. For high GSM, overfeed is increased and fabric width is decreased. For low GSM, overfeed is decreased and fabric width is increased.
2. Control shrinkage
3. Twisting control
4. Increase smoothness of fabric
5. Heat setting is done of fabric etc.
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

丨Main Configuration丨

No Items & Unit Standard Option Brand Remark

1 Infrared Centering √ HET(China) Included

2 Mechanical centering √ ALIDO Included

3 Mechanical weft-straightener √ ALIDO Included

4 Photoelectric weft-straightener √ ALIDO Exclusive

5 Infrared auto tracking system √ HET(China) Included

6 Sync tension control system √ ALIDO Included

7 Selvage trimming system √ Exclusive

8 Stainless steel conveyor √ ALIDO Included

9 Double parallel SS steam box & SS Felt Steam box √ ALIDO Included

10 Uncurler √ ALIDO Included

11 Overfeed system √ ALIDO Included

12 Motor & reducer √ China Included

13 Inverter & PLC & HIM √ DELTA Included

14 Selvage gumming  system √ Exclusive

15 Cooling system √ ALIDO Included

16 Fabric exit system √ ALIDO Included

17 Low voltage devices √ Schneider Included

18 Stainless steel chain √ China Included

19 Stainless steel rail(oil-free) √ China Included

20 Stainless steel pin & pin plate √ China Included

21 Fabric width adjustment system √ China Included

22 Fabric width ad sensor √ Omron Included

23 Compacting felt √ China Included

24 Industrial cabinet Air-condition √ China Included

25 Button & indicator light √ China Included

26 Double sides static eliminator √ China Included

27 Fabric exit humidity system √ Exclusive

28 Faric metering system √ China Included

29 Installation tools & cables & necessities √ China Included

Electrical heating system

1 temperature-controlled meter √ Honeywell Included

2 tubular electric heating element √ China Included

3 carbon brush slip-ring √ China Included

4 Sealed cylinder with conduct oil √ China Included

3 Overheating protection System √ China Included

Compactor Width - ALIDO

Compactor Width
Compactor Width consists of 2 felt compacting units, each of them consisting of a Nomex felt approx. 20 mm thick, a steam heated chrome-plated center roller of dia. 400 mm, a rubber covered roller driven by variable frequency drive, a compacting pressure roller, a felt tensioning roller and a felt centering roller
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO
丨Main Configuration丨
No Items & Unit Standard Option Brand Remark
1 Infrared Centering √ HET(China) Included
2 Mechanical centering √ ALIDO Included
3 Mechanical weft-straightener √ ALIDO Included
4 Photoelectric weft-straightener √ ALIDO Exclusive
5 Infrared auto tracking system √ HET(China) Included
6 Sync tension control system √ ALIDO Included
7 Selvage trimming system √ Exclusive
8 Stainless steel conveyor √ ALIDO Included
9 Double parallel SS steam box & SS Felt Steam box √ ALIDO Included
10 Uncurler √ ALIDO Included
11 Overfeed system √ ALIDO Included
12 Motor & reducer √ China Included
13 Inverter & PLC & HIM √ DELTA Included
14 Selvage gumming  system √ Exclusive
15 Cooling system √ ALIDO Included
16 Fabric exit system √ ALIDO Included
17 Low voltage devices √ Schneider Included
18 Stainless steel chain √ China Included
19 Stainless steel rail(oil-free) √ China Included
20 Stainless steel pin & pin plate √ China Included
21 Fabric width adjustment system √ China Included
22 Fabric width ad sensor √ Omron Included
23 Compacting felt √ China Included
24 Industrial cabinet Air-condition √ China Included
25 Button & indicator light √ China Included
26 Double sides static eliminator √ China Included
27 Fabric exit humidity system √ Exclusive
28 Faric metering system √ China Included
29 Installation tools & cables & necessities √ China Included
Electrical heating system
1 temperature-controlled meter √ Honeywell Included
2 tubular electric heating element √ China Included
3 carbon brush slip-ring √ China Included
4 Sealed cylinder with conduct oil √ China Included
3 Overheating protection System √ China Included

Ferraro Open Width Compactor - ALIDO

Ferraro Open Width Compactor
Ferraro Open Width Compactor is suitable for open width knit fabrics to achieve exact dimensional stability and a soft feel. The machine generally consists of a feeding frame with centering device and driven scroll rollers, an equalizing stenter frame with overfeed roller and brush pinning arrangement
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO

丨Main Configuration丨

No Items & Unit Standard Option Brand Remark

1 Infrared Centering √ HET(China) Included

2 Mechanical centering √ ALIDO Included

3 Mechanical weft-straightener √ ALIDO Included

4 Photoelectric weft-straightener √ ALIDO Exclusive

5 Infrared auto tracking system √ HET(China) Included

6 Sync tension control system √ ALIDO Included

7 Selvage trimming system √ Exclusive

8 Stainless steel conveyor √ ALIDO Included

9 Double parallel SS steam box & SS Felt Steam box √ ALIDO Included

10 Uncurler √ ALIDO Included

11 Overfeed system √ ALIDO Included

12 Motor & reducer √ China Included

13 Inverter & PLC & HIM √ DELTA Included

14 Selvage gumming  system √ Exclusive

15 Cooling system √ ALIDO Included

16 Fabric exit system √ ALIDO Included

17 Low voltage devices √ Schneider Included

18 Stainless steel chain √ China Included

19 Stainless steel rail(oil-free) √ China Included

20 Stainless steel pin & pin plate √ China Included

21 Fabric width adjustment system √ China Included

22 Fabric width ad sensor √ Omron Included

23 Compacting felt √ China Included

24 Industrial cabinet Air-condition √ China Included

25 Button & indicator light √ China Included

26 Double sides static eliminator √ China Included

27 Fabric exit humidity system √ Exclusive

28 Faric metering system √ China Included

29 Installation tools & cables & necessities √ China Included

Electrical heating system

1 temperature-controlled meter √ Honeywell Included

2 tubular electric heating element √ China Included

3 carbon brush slip-ring √ China Included

4 Sealed cylinder with conduct oil √ China Included

3 Overheating protection System √ China Included

Lafer Open Width Compactor -ALIDO

Lafer Open Width Compactor
Lafer Open Width Compactor consists of 2 felt compacting units, each of them consisting of a Nomex felt approx. 20 mm thick, a steam heated chrome-plated center roller of dia. 400 mm, a rubber covered roller driven by variable frequency drive, a compacting pressure roller, a felt tensioning roller and a felt centering roller
From Textile Finishing Machinery Manufacturer & Supplier - ALIDO
丨Main Configuration丨
No Items & Unit Standard Option Brand Remark
1 Infrared Centering √ HET(China) Included
2 Mechanical centering √ ALIDO Included
3 Mechanical weft-straightener √ ALIDO Included
4 Photoelectric weft-straightener √ ALIDO Exclusive
5 Infrared auto tracking system √ HET(China) Included
6 Sync tension control system √ ALIDO Included
7 Selvage trimming system √ Exclusive
8 Stainless steel conveyor √ ALIDO Included
9 Double parallel SS steam box & SS Felt Steam box √ ALIDO Included
10 Uncurler √ ALIDO Included
11 Overfeed system √ ALIDO Included
12 Motor & reducer √ China Included
13 Inverter & PLC & HIM √ DELTA Included
14 Selvage gumming  system √ Exclusive
15 Cooling system √ ALIDO Included
16 Fabric exit system √ ALIDO Included
17 Low voltage devices √ Schneider Included
18 Stainless steel chain √ China Included
19 Stainless steel rail(oil-free) √ China Included
20 Stainless steel pin & pin plate √ China Included
21 Fabric width adjustment system √ China Included
22 Fabric width ad sensor √ Omron Included
23 Compacting felt √ China Included
24 Industrial cabinet Air-condition √ China Included
25 Button & indicator light √ China Included
26 Double sides static eliminator √ China Included
27 Fabric exit humidity system √ Exclusive
28 Faric metering system √ China Included
29 Installation tools & cables & necessities √ China Included
Electrical heating system
1 temperature-controlled meter √ Honeywell Included
2 tubular electric heating element √ China Included
3 carbon brush slip-ring √ China Included
4 Sealed cylinder with conduct oil √ China Included

3 Overheating protection System √ China Included

Stenter - ALIDO

Stenter

Fluctuating temperatures inside the stenter cause a consistent variation of crystallinity in the fibre structure, which leads to different affinity for dyes.The moisture in the fibre produces soft hand, but variable moisture percentages in the different fabric sections create the above mentioned defect (variable crystallinity).Too low temperatures do not allow a good setting while too high temperatures and too long setting times cause yellowing (PA and elastic fibres), stiff hand (acrylics), and loss of elasticity
From: Textile Finishing Machinery Manufacturer & Supplier - ALIDO

丨Stenter Machine丨

A machine or apparatus for stretching or stentering fabrics. The purpose of the stenter machine is to bring the length and width to pre determine dimensions and also for heat setting and it is used for applying finishing chemicals and also shade variation is adjusted. The main function of the stenter is to stretch the fabric widthwise and to recover the uniform width.

丨Functions of Stenter Machines丨

1. Heat setting is done by the stenter for lycra fabric, synthetic and blended fabric.
2. Width of the fabric is controlled by the stenter.
3. Finishing chemical apply on fabric by the stenter.
4. Loop of the knit fabric is controlled.
5. Moisture of the fabric is controlled by the stenter.
6. Spirility controlled by the stenter.
7. GSM of the fabric is controlled by stenter.
8. Fabric is dried by the stentering process.
9. Shrinkage property of the fabric is controlled.
10. Curing treatment for resin, water repellent fabric is done by the stenter.

丨Components of Stenter Machine丨

1. • Padder
   • Photoelectric Weft straightner
   • Burners
   • Heat recovery(Options)
   • Attraction rollers
   • Circulating fans
   • Exhaust fans
   • Winder
   • Clips
   • Pins
   • Cooling drums

丨Working Procedure of Stenter Machine丨

1. open-width fabric  entry→ spreading→infrared centering→padder→  weft straightener   →overfeed→uncurling→infrared detect→ pinning→stentering→air cooling→depinning→fabric exit→plaiting/winding

丨Advantages丨

1. • Highest drying performance and process control matching any type of fabric due to the technically mature and patented split-flow air circulation system
   • Very homogeneous air flow and temperature distribution due to alternately arranged thermo zones (every 1.5m).
   • Very low specific energy consumption
   • Extremely robust chains, chain rails, pin bar carriers and clips, needing only little maintenance
   • Exactly reproducible finishing results because of a complete automation and recipe administration in the line
   • Available types of heating: Gas direct, gas indirect, thermal oil, steam, electricity and combinations thereof
   • Optimum straightening results due to an integrated straightener with shortest possible fabric path to the pinning-on point, available as option
